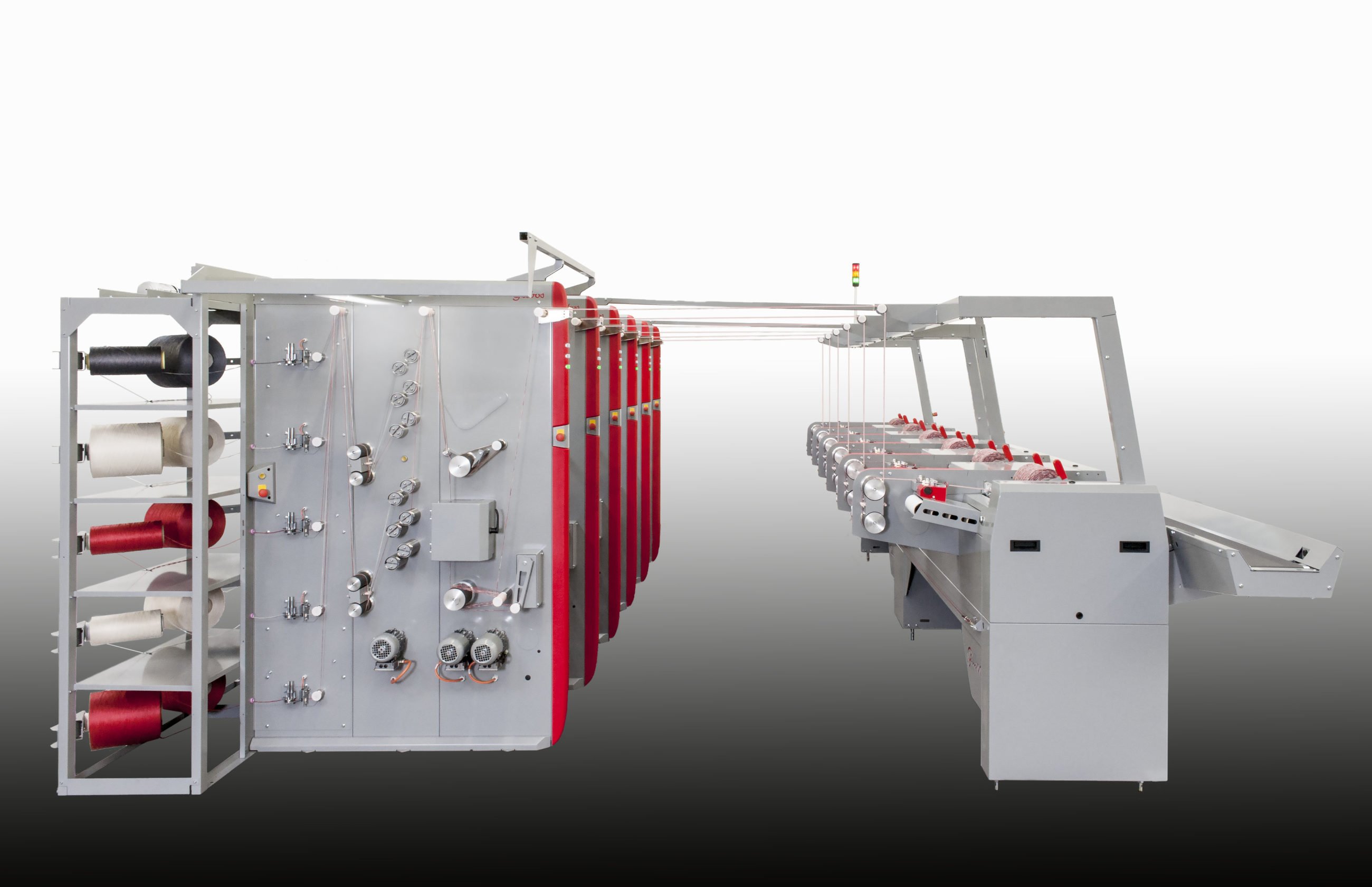

UniWinder DynaJet IM
Air entangling machine for carpet or technical yarns.
Advantages
- Each spindle is Independent or can be grouped.
- Unlimited styling possibilities
- Thanks to the automatic doffing system labor is reduced to the absolute minimum.
- Low maintenance cost.
- Robust design with few moving parts and integrated maintenance interface allow for optimal uptime of the machine at a minimum cost.
- Flexible, modular construction.
Brochure UniWinder DynaJet
Description
Air entangling machine for carpet or technical yarns.
- Air entangling of BCF & CF yarns up to 6 ends at high speed.
- Full flexibility with individually driven spindles.
- Thanks to the automatic doffing system labor is reduced to the absolute minimum.
- IM air entangling system with electronical adjustable overfeed of the feeder yarns.
- Low air consumption (Heberlein entangling jets).
- Low maintenance cost.
- Full process control with the Hyperion and Orion control system.
- Modular design with three Independent spindles per section.
Technical specifications
| Material | Filament garens – BCF and/or CF |
| Yarn count | 600 tot 10.000 dTex |
| Layout | 800 of 1000 mm |
| Number of positions | 3 to 24 |
| Speed | up to 1000 m/min. |
| Number of ends | 2 to 6 |
