UniWinder – CMS

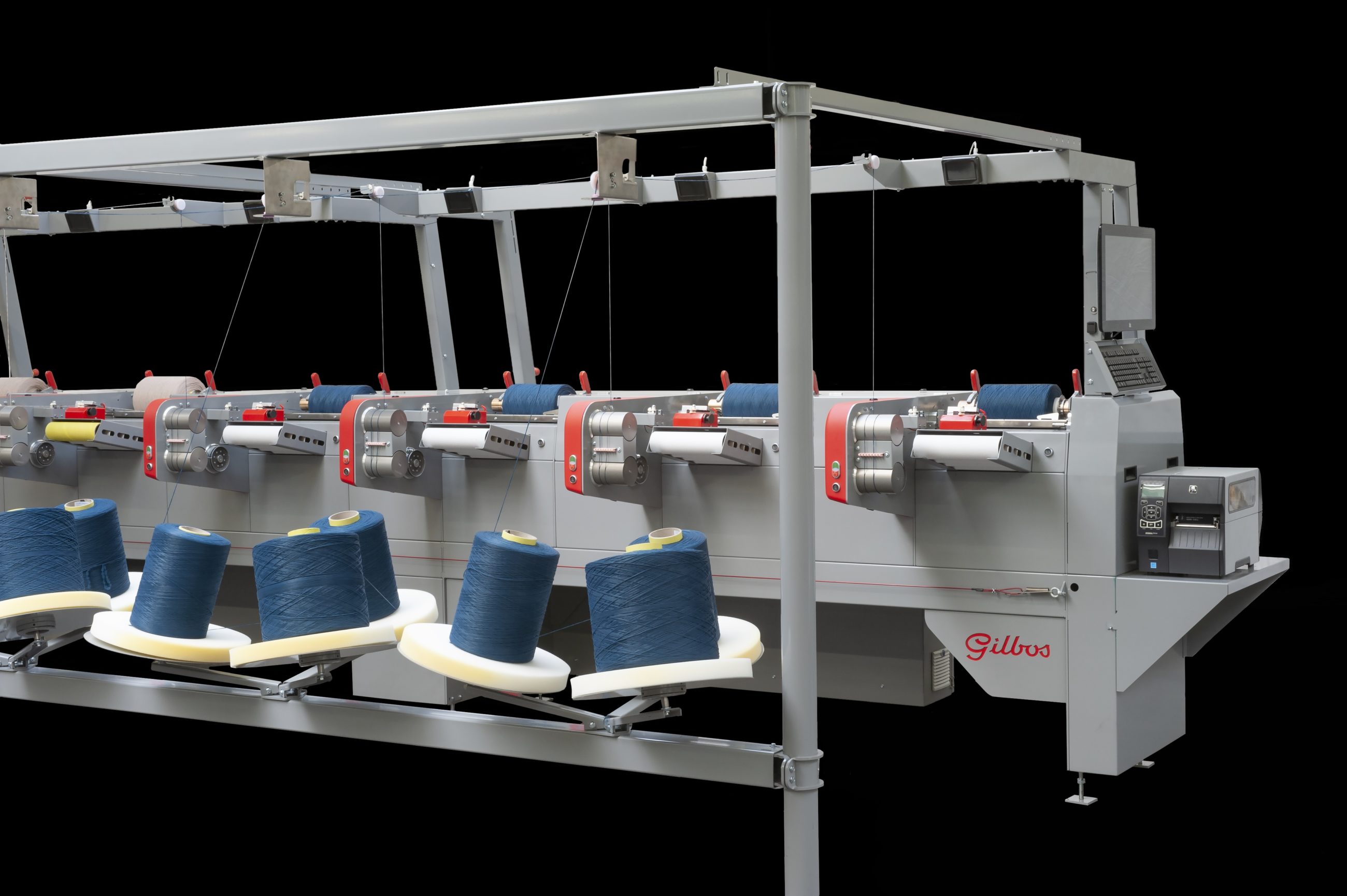

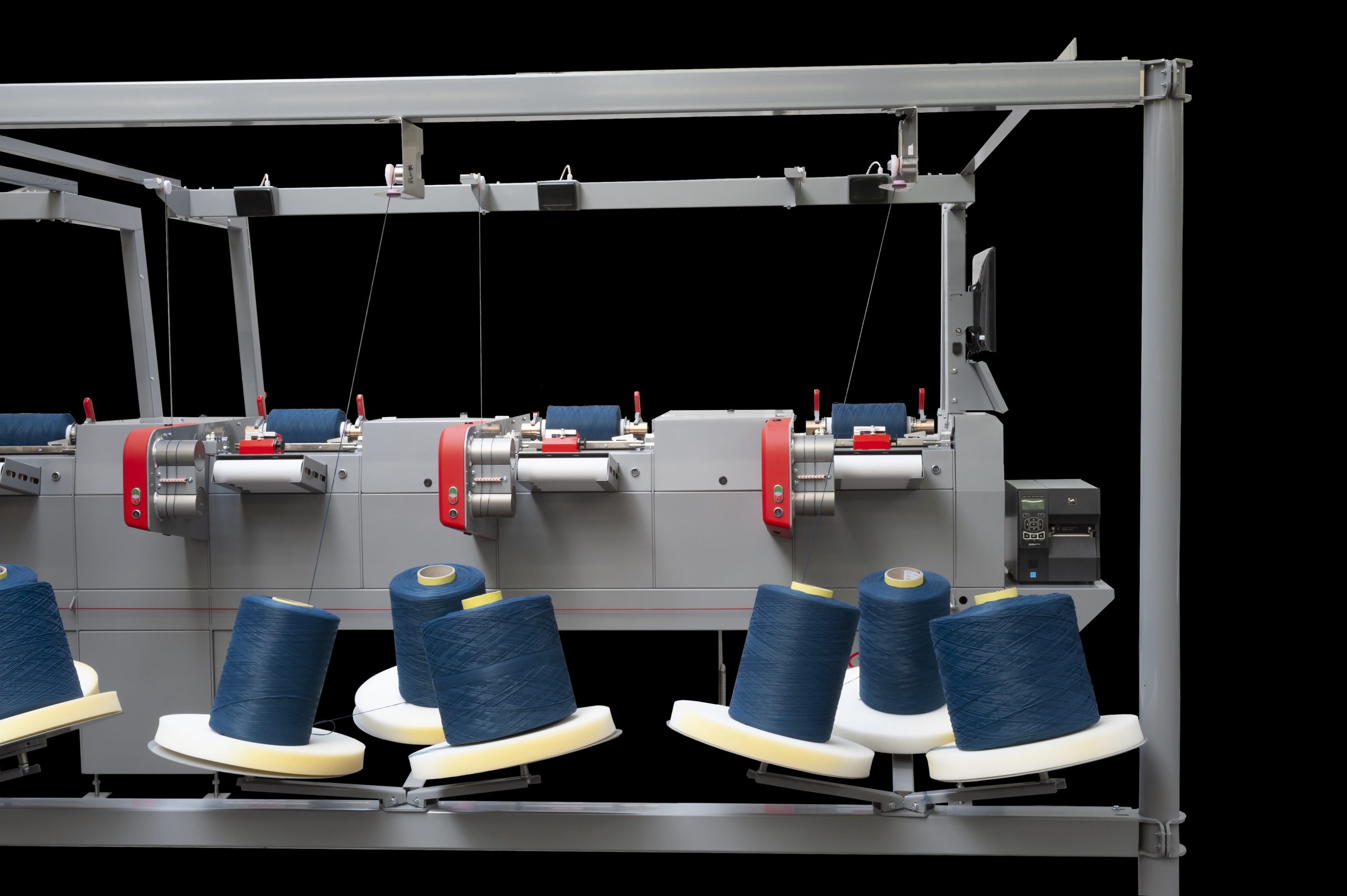

Winder for carpet yarns with Creel Management System.

Advantages

  • Each spindle is Independent or can be grouped.
  • Possibility to wind each package to a specific length according to the design of the carpet.
  • Input of each package length is determined by a csv file of any Carpet Design Software.
  • Optimum use of the winder and the operator’s time.
  • Low maintenance cost.
  • Plc controlled with an excellent operator & maintenance interface.
  • Flexible, modular construction.
Brochure UniWinder - CMS

Description

Winder to wind each package to a specific length according to the carpet design.

  • Very accurate length measurement +/- 0,5 %.
  • Optional label printer.
  • Thanks to automatic doffing, labor is reduced to a minimum.
  • Low maintenance costs.
  • Solid and robust construction, with very few moving parts, plc controlled and with an excellent maintenance interface.
  • Modular design with three Independent spindles per section.

Technical specifications

Material Filament or  spun yarns – Synthetic or natural fibres
Yarn count 600 to 20.000 dTex
Layout   800 or 1000 mm
Number of positions 3 to 24 per machine
Speed up to 1000 m/min.
